Reading the Hot Spot: Experts Interpreting Thermal Patterns on Pyro Cabling

Thermal imaging has become one of the most effective predictive maintenance tools available to commercial and industrial businesses. By identifying abnormal heat signatures before equipment fails, organisations can minimise downtime, reduce fire risks, and improve the reliability of critical electrical infrastructure.

However, successful thermal imaging is about far more than identifying the hottest component in a switchboard. Professional thermography requires a deep understanding of electrical systems, material properties, load conditions, and thermal behaviour. This becomes particularly important when inspecting specialised installations such as pyro (mineral insulated) cabling.

A recent thermal imaging switchboards inspection highlighted exactly why expert interpretation matters.

What Did Thermal Imaging Reveal During the Inspection?

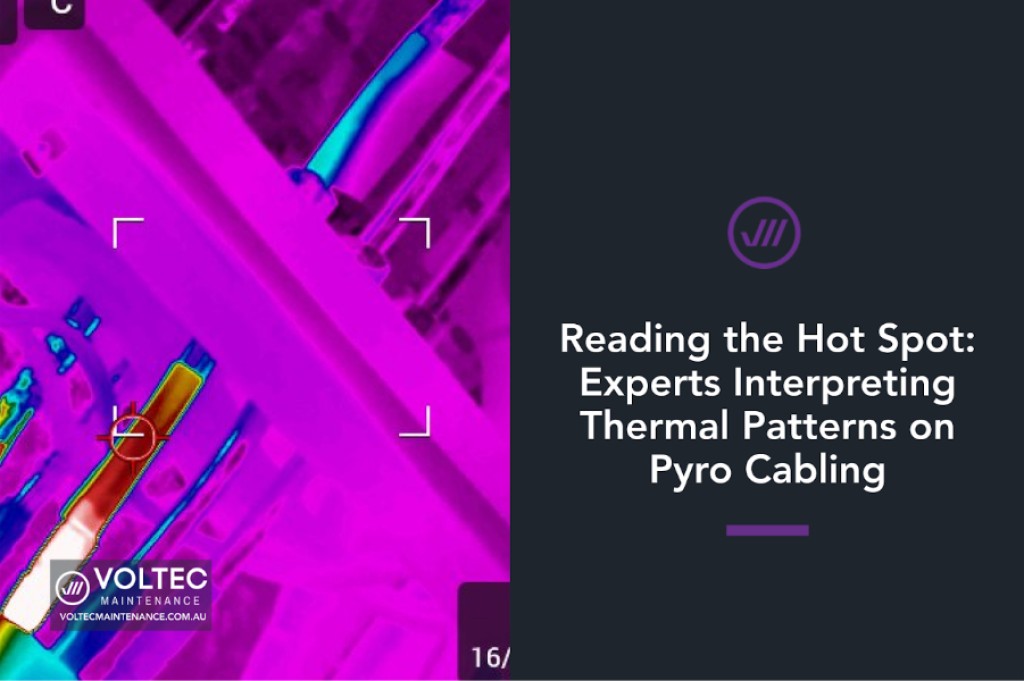

During a routine thermal imaging inspection, a localised hot spot was identified on a phase conductor connected to a main isolator. Temperatures reached approximately 58°C on one phase, while adjacent conductors were operating at around 30°C.

While 58°C may not immediately appear extreme, the significant temperature difference between phases revealed a developing issue.

This type of uneven thermal pattern is a classic indicator of a high-resistance connection, often caused by a loose, deteriorated, or compromised termination.

Why Do Loose Connections Create Serious Electrical Risks?

Electrical connections are designed to provide low-resistance pathways for current flow. When a termination becomes loose or deteriorates over time, resistance increases at the connection point.

This creates a failure cycle:

• Increased electrical resistance

• Localised heat generation under load

• Progressive degradation of the connection

• Escalating temperatures (thermal runaway)

• Potential arcing, failure, or fire

Without intervention, what begins as a minor connection issue can eventually result in significant equipment damage or operational disruption.

What Makes Pyro Cabling Different During Thermal Inspections?

This installation utilised older pyro (mineral insulated) cabling, which behaves very differently under thermal imaging compared to standard PVC or XLPE insulated conductors.

Several factors can complicate interpretation:

• Metal-sheathed pyro cables have low emissivity

• Reflective surfaces can distort thermal readings

• Ambient heat sources may influence images

• Termination boots and insulation materials can appear hotter than the actual fault location

As a result, thermal images involving pyro cabling require far more than a simple temperature reading.

How Can Inexperienced Operators Misinterpret Thermal Patterns?

Thermal cameras generate valuable data, but interpretation remains critical.

Without sufficient experience, operators may:

• Focus only on the hottest visible component

• Misidentify reflected heat as a fault

• Overlook significant temperature differentials

• Underestimate the severity of developing issues

In pyro installations, apparent temperatures do not always tell the full story. What appears hottest may not actually be the source of the problem.

Why Does Temperature Differential Matter More Than Absolute Temperature?

Professional thermographers who perform thermographic testing understand that successful diagnosis relies on analysing patterns, not simply temperatures.

In this case, the key warning sign was not the 58°C reading itself. The critical factor was the difference between that conductor and adjacent phases operating at approximately 30°C.

By evaluating:

• Phase-to-phase temperature variation

• Material characteristics

• Load conditions

• Equipment configuration

The inspection clearly identified a developing connection fault despite the complexities introduced by the pyro cable installation.

How Does Early Detection Protect Business Operations?

The fault identified during this inspection had not yet reached catastrophic failure. However, it was actively progressing.

Early detection provides significant business benefits:

• Prevents unplanned electrical outages

• Reduces fire and safety risks

• Protects switchgear and connected assets

• Minimises emergency repair costs

• Supports operational continuity

This proactive approach allows corrective maintenance to be scheduled before a failure impacts business operation.

Why Is Professional Thermography More Than Taking a Thermal Photo?

Modern thermal cameras are powerful tools, but equipment alone does not guarantee accurate diagnosis.

Professional thermography combines:

• Electrical expertise

• Knowledge of Australian Standards

• Understanding of emissivity and reflectivity

• Interpretation of thermal behaviour

• Practical fault analysis

The difference between a basic thermal scan and a professional thermographic inspection often determines whether developing faults are detected early or missed entirely.
