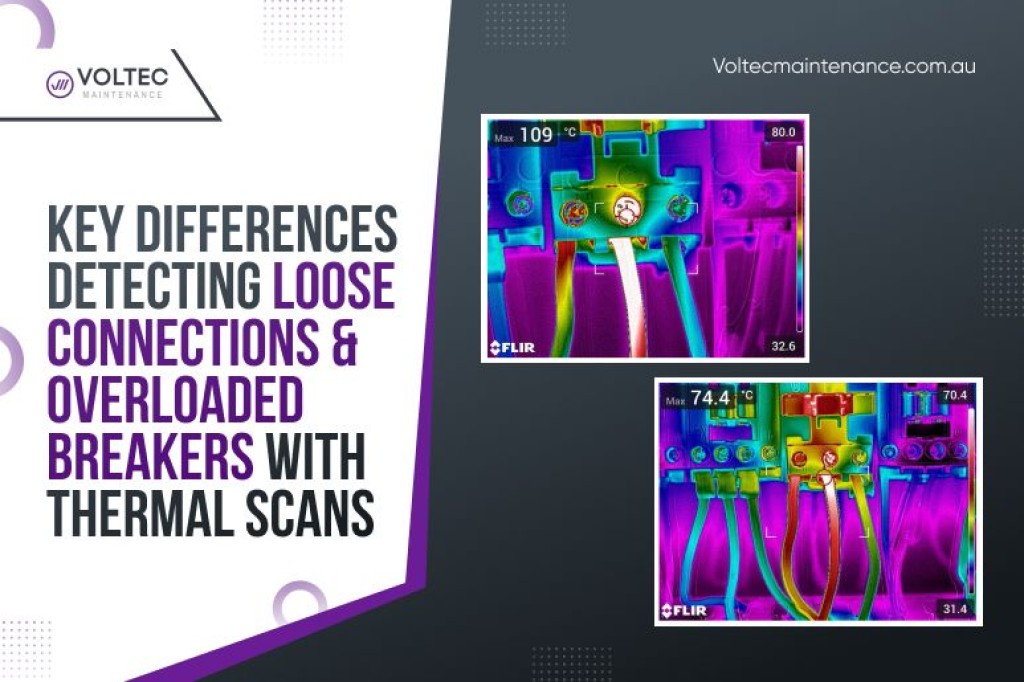

Key Differences: Detecting Loose Connections & Overloaded Breakers with Thermal Scans

At Voltec Maintenance, our team often conducts thermal imaging as a crucial part of electrical system inspections. Technology has become indispensable for ensuring safety and maintaining operational efficiency. However, there are notable differences between identifying hot spots from loose connections and diagnosing overloaded breakers through thermal scans. Understanding these differences can help property owners and facility managers better appreciate the value of professional thermographic inspections and how each type of issue can impact electrical safety.

Understanding Thermal Imaging in Electrical Inspections

Thermographic Testing detects infrared radiation emitted by objects and converts it into a visual representation of heat distribution. For electrical systems, this means identifying temperature anomalies that could indicate potential issues. However, not all hot spots mean the same thing. Type of anomaly can suggest different underlying causes and require different corrective actions.

Identifying Loose Connections

Loose connections are one of the most common issues detected during Thermal Imaging Switchboards scans. These arise when connections within a circuit aren’t properly secured, causing resistance to increase at the point of contact. Here’s what you need to know:

• Why Loose Connections Heat Up: The resistance at a loose connection generates excessive heat as electrical current passes through. This increase in temperature can often lead to further degradation of the connection, potentially escalating to complete failure or electrical fires.


• Thermal Scan Indicators: On a thermal scan, loose connections typically show as a localized hot spot with a sharp temperature gradient. The high heat is confined to a specific terminal or connection point, indicating that electrical resistance is concentrated in a small area.


• Corrective Measures: Resolving a loose connection involves tightening the connection or replacing any corroded or damaged components to ensure a secure, efficient electrical path.

Detecting Overloaded Breakers

On the other hand, overloaded breakers signify a different type of risk. An overload occurs when a circuit draws more current than it is rated to handle. This can cause the breaker itself or associated wiring to overheat.

• Why Overloads Cause Heat: Overloaded breakers generate excess heat because they are being forced to operate beyond their intended capacity. This strain not only affects the breaker but can also spread excessive heat throughout the circuit.


• Thermal Scan Indicators: Unlike a hot spot from a loose connection, an overloaded breaker typically shows as a more diffuse area of heat. The temperature may be elevated across a broader section of the breaker panel or circuit path, indicating the load distribution issue.


• Implications and Solutions: Addressing an overloaded breaker often involves redistributing the electrical load or upgrading the breaker to handle the current demand safely. Ignoring an overloaded breaker can result in frequent tripping, damage to electrical components, or worse, an electrical fire.

Key Differences Summarized

1. Source of Heat:

• Loose Connections: Localised heating due to increased resistance at a connection point.
• Overloaded Breakers: Diffuse heating due to excess current load.

2. Visual Thermal Patterns:

• Loose Connections: Sharp, confined hot spots.

• Overloaded Breakers: More evenly spread heat over a larger area.

3. Risk Management:

• Loose Connections: Primarily a risk of equipment damage or fire at the connection point.

• Overloaded Breakers: Risk involves overheating that can affect broader areas of the electrical system, increasing the chance of larger-scale electrical faults or fires.

The Importance of Professional Thermal Imaging

While the signs of both issues can be detected using a high-quality thermal camera, interpreting these images requires experience and expertise. At Voltec Maintenance, our certified thermographers are trained to identify and assess these heat patterns in line with industry standards, ensuring that any potential risk is accurately diagnosed and addressed.

Thermal imaging is a powerful preventive tool. Regular inspections can help catch these issues before they escalate, reducing downtime, preventing costly repairs, and, most importantly, ensuring the safety of your facility and staff.
